Aluminium Tank Head Dished Head Flange Making Machine for End Flanging dish end spinning machine
Product Overview

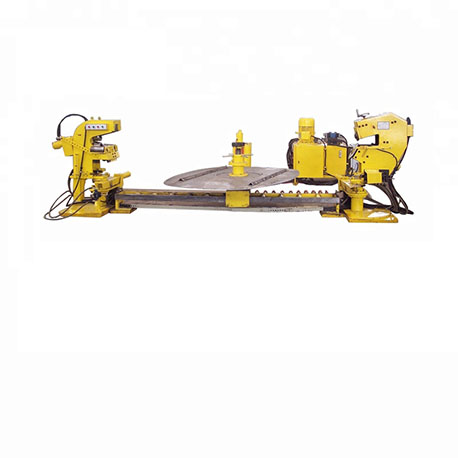

The special-shaped sealing machine, spinning machine, edging machine, and aluminum can die making machine is a complete forming and edge-processing solution composed of the main sealing machine, pulley, hydraulic system, vacuum system, and main cutting unit. This advanced equipment is designed for forming aluminum alloy tank heads, pressure vessel components, and various irregular containers.
Due to the low elongation characteristics of aluminum alloy tank materials, cracks may appear during forming when the inner curvature is small. To address this challenge, our latest special-shaped sealing head machine with an inner arc of 40mm and spinning height of 70mm has been successfully developed to ensure stable forming quality.
Technical Specifications
| Maximum Diameter | 3000mm (adjustable as required) |
| Minimum Diameter | 900mm |
| Minimum Arc Radius | 250mm |
| Cutting & Spinning Speed | 0–4000 m/min (line speed) |
| Material Compatibility | Carbon steel, stainless steel, aluminum & aluminum alloy |
| Max Thickness | Carbon steel ≤8mm, stainless steel ≤6mm, aluminum/alloy ≤12mm |
| Hydraulic System Pressure | 16 MPa |
| Workpiece Fixing Mode | Vacuum chuck |
| Main Motor Power | 11 kW |
Key Features
- High-strength forming capability for irregular and large-diameter heads
- Precise spinning and edging performance for high-quality finishes
- Advanced hydraulic pressure control ensuring stable processing
- Wide material adaptability including aluminum alloy tank components
- Vacuum chuck design for safe and secure workpiece holding
- Supports custom diameter and customized production requirements
Application Fields
This machine is widely used across multiple industrial manufacturing sectors:
- Pressure vessel manufacturing
- Chemical tank production
- Aluminum alloy tank truck forming
- Food and beverage aluminum can production
- Petroleum & gas storage tank production
- Automotive & aerospace metal forming components
- Special-shaped container and customized head manufacturing
Company Introduction
Dalian Topress Machinery is a leading manufacturer specializing in metal forming machinery, pressure vessel equipment, and automated spinning solutions. With decades of R&D experience, we provide high-precision, high-stability equipment for global clients from more than 60 countries.
Our product range includes:
- Head forming machines
- Spinning machines
- Edging and flanging machines
- Metal bar peeling & straightening machines
- Custom metal processing equipment
Packing & Transportation
To ensure safe and reliable delivery, all equipment is packaged using:
- International-standard export wooden cases
- Anti-collision foam protection
- Moisture-proof packaging
- Steel-frame reinforcement for oversized equipment
We support global shipment via:
- Sea freight (FCL & LCL)
- Railway transportation
- Air freight for urgent orders
- Door-to-door logistics (available in selected regions)
After-sales Service
- 1-Year Warranty for Core Components
- Online Technical Support (24/7)
- Remote Video Guidance & Operation Training
- Engineers Available for Overseas Installation (optional)
- Lifetime Spare Parts Support
Contact Us
Dalian Topress Machinery Co., Ltd.
Email: liu@mingchenggroup.com
Mob/WhatsApp: +86 13322202758
Website: www.barpeeling.com
Winter Promotion
From November 11 to December 12, 2020, customers can receive a voucher worth 999 RMB for consultation and purchase of our special-shaped flat-bottom flanging machine. Contact customer service today for details!
Request a Quote
Ready to enhance your production performance? Send us your inquiry and our engineering team will respond with a tailored solution within 24 hours.
