Dish End Pressing and Flanging Machine
Your high-precision solution for manufacturing elliptical, dish, spherical, and conical pressure vessel heads.
Product Overview
The Dish End Pressing and Flanging Machine is engineered for high-accuracy forming of pressure vessel heads. Using advanced hydraulic forming technology, the main cylinder drives the piston to press metal plates into highly accurate concave shapes. An integrated manipulator allows smooth lifting, rotation, and tilting, significantly improving production efficiency.
Working Principle
The hydraulic system powers the main cylinder to press raw plates into required concave shapes. During processing, the automatic manipulator controls rotation and inclination movements to achieve seamless forming. This minimizes manual input and ensures consistent product quality.
Key Features
- High-Strength Construction: Piston rod forged with high-strength steel for long lifetime.
- Premium Surface Treatment: Columns and rods undergo quenching and hard-chromium plating.
- Stable & Reliable: Equipped with motors, pumps, valves, and electrical parts from trusted global brands.
- Safety Protection System: Multi-layer protection for hydraulic, electrical, and mechanical systems.
- Low Vibration: High-pressure flexible hose minimizes vibration and leakage.
- Advanced PLC Control: Omron PLC, intelligent interface, stable performance.
- Integrated Workflow: Includes forming + flanging + edge trimming machines for complete production.
Why Choose This Equipment?
- Supports many head types: elliptical, dish, tapered, spherical.
- Improves efficiency and product accuracy.
- Ideal for medium and large-scale industrial manufacturing.
- Customizable to meet different diameter, thickness, and forming requirements.

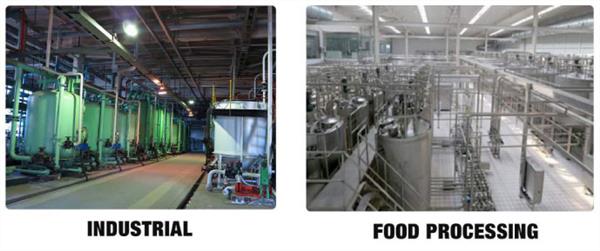

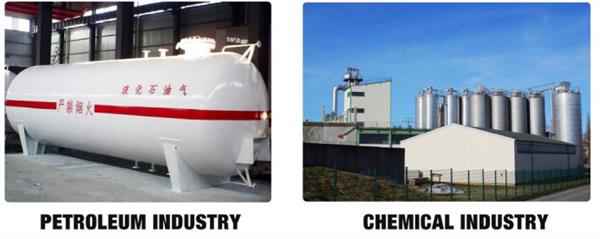

Application Fields
This machine is widely used in industries requiring pressure vessel head forming:
- Pressure Vessel Manufacturing
- Oil & Gas Equipment
- Chemical & Petrochemical Industry
- Food & Beverage Processing Tanks
- Pharmaceutical Processing Tanks
- Automotive & Heavy Truck Fuel Tanks
- Aerospace Components
- LNG / LPG Storage Tanks
- Boilers, Heat Exchangers, Reactors, Storage Tanks
Packing & Transportation
- Packing: Steel frame + moisture-proof wrapping + protective covers.
- Container Loading: Secured with reinforced bolts and welded fixing points.
- Shipping Options: Sea freight (FCL/LCL), land transport, or air freight for spare parts.
Export Documents: CE certificate, packing list, commercial invoice, bill of lading, HS code documentation.
Customization Options
We provide full customization to meet your production requirements:
- Diameter range customization
- Thickness customization
- PLC brand (Omron / Siemens / Mitsubishi)
- Servo system brand
- Voltage customization (220V/380V/415V/460V)
- Machine size and forming height customization
After-Sales Support
- Online technical support 24/7
- On-site installation & training (optional)
- One-year warranty for core components
- Lifetime technical support
- Spare parts supply at factory price
