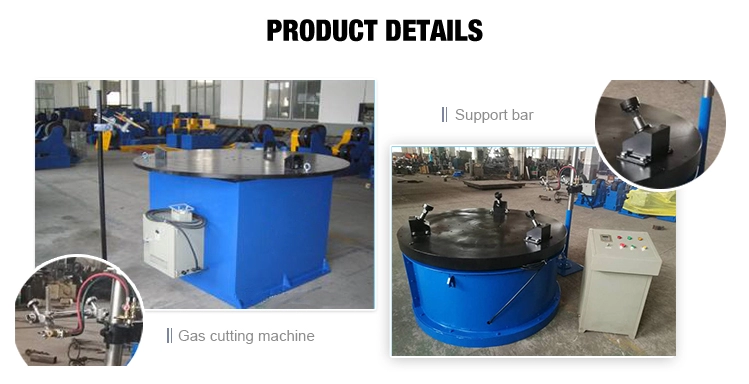

Hot selling stainless steel automatic oil tank head cutting machine

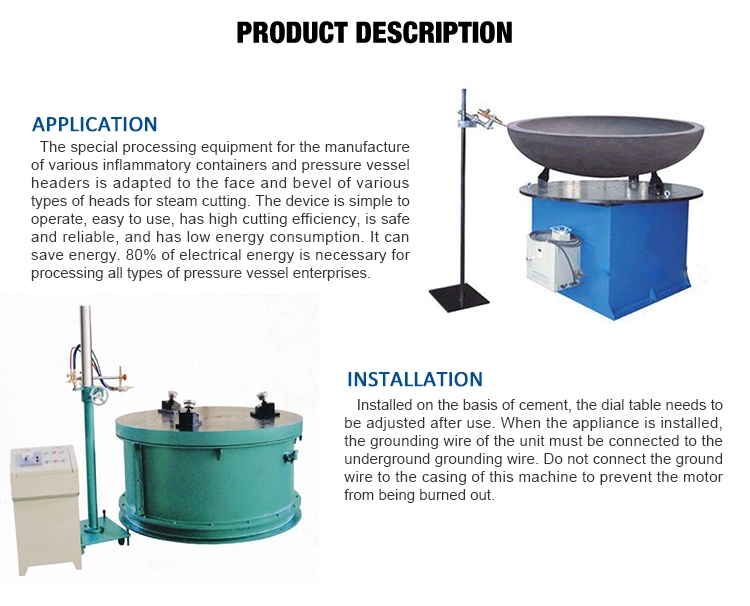

The automatic oil tank head cutting machine is a professional equipment designed for precise gas cutting of tank heads, dish ends, and metal domes. Featuring a heavy-duty rotary table, intelligent electrical control, and high cutting accuracy, this machine is widely used in tank manufacturing, pressure vessels, and metal fabrication industries.
1. Equipment Overview

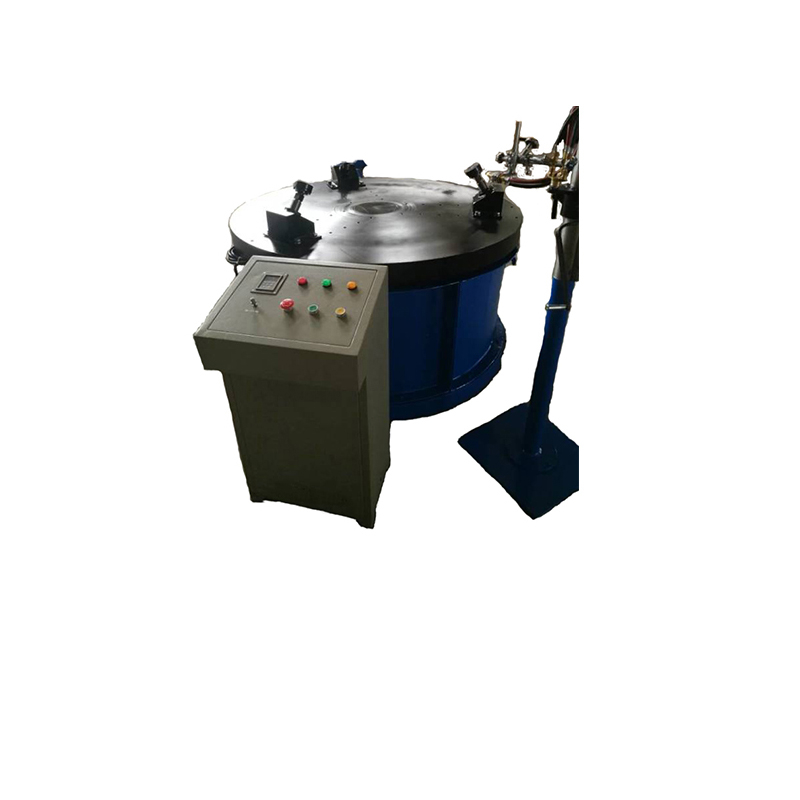

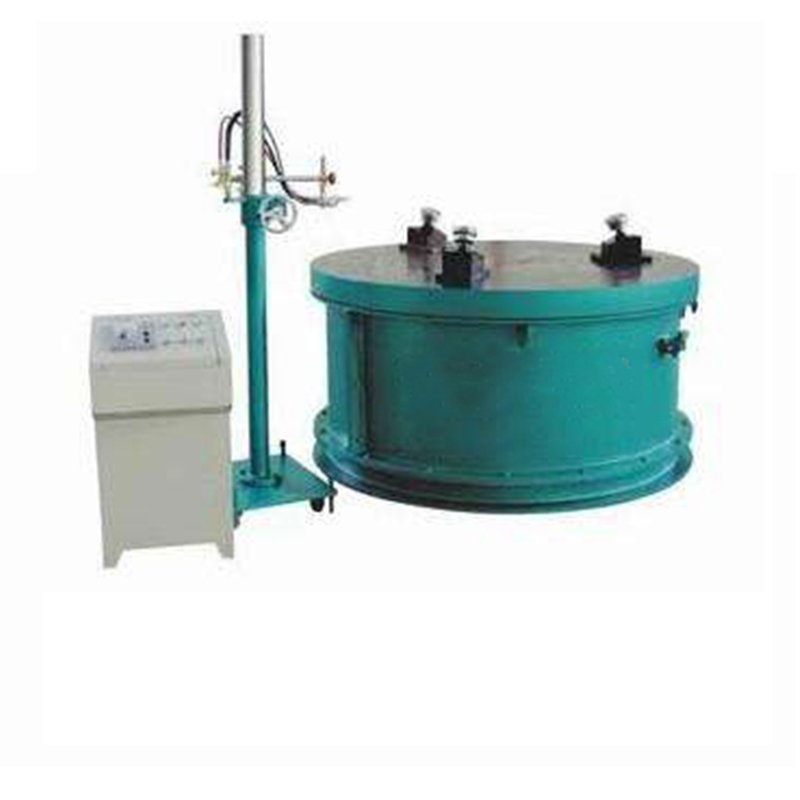

This head cutting machine integrates a rotary worktable, gas cutting mechanism, and centralized electrical cabinet. It is engineered for efficient, stable, and safe cutting of different head types including hemispherical, torispherical, flat, and conical heads.
Table Rotation System
- Includes working table, base, and turning mechanism.
- Self-locking transmission system ensures safe cutting stability.
- Electrical control consists of a main control cabinet + remote controller.
- Frequency converter controls accurate rotational speed and direction.
- Support clockwise & counterclockwise rotation with precise angle control.
Electrical Control System
- Equipped with inverter, fuses, control transformer, relays, and contactors.
- Supports forward/reverse rotation and emergency stop.
- Remote control operation available for long-distance safety.
- Worktable rotation displayed clearly for operator accuracy.
Lubrication System
- Worm gearbox uses lubricating oil.
- Tilt mechanism and bearings use high-temperature grease.
- Lubrication must be refilled regularly to ensure long-term durability.
Important Precautions
When wiring the machine, ensure:
• Clockwise rotation for standard turning
• Counterclockwise rotation for reverse cutting
Incorrect direction will activate protective limit control and stop operation.
2. Machine Features
- High cutting efficiency and precise bevel cutting.
- Low power consumption and stable safety performance.
- Suitable for all types of stainless steel and carbon steel tank heads.
- Convenient to operate and maintain.
3. Technical Specifications
| Model | Platform Diameter (mm) | Cutting Diameter (mm) | Motor Power (kW) | Rated Loading (T) |
|---|---|---|---|---|
| FQ-12 | Φ600 | Φ200–Φ1200 | 0.55 | 1.5 |
| FQ-15 | Φ1200 | Φ300–Φ1500 | 0.75 | 3 |
| FQ-35 | Φ1400 | Φ300–Φ3500 | 1.1 | 4 |
| FQ-35 (Extended) | Φ1600 | Φ300–Φ5500 | 2.2 | 5 |
Note: Custom sizes, load capacities, and cutting ranges are available upon request.

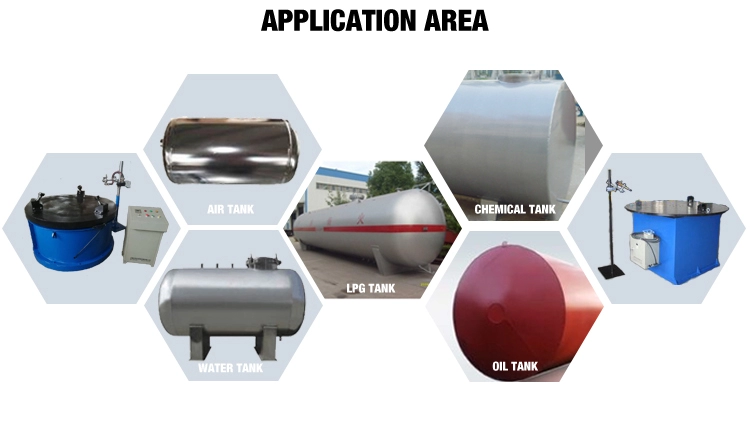

4. Applications
The automatic tank head cutting machine is widely used in industries such as:
- Oil tank manufacturing
- LPG & LNG tank production
- Air compressor tanks
- Water tanks and pressure vessels
- Chemical storage tanks
- Food-grade stainless steel tanks
- Boilers and energy equipment
Finished tank heads ensure high-precision roundness and bevel quality for strong welding results.
5. Packaging & Transportation
- Anti-rust oil applied to machine surface before delivery.
- Electronics packed in fumigation-free wooden cases.
- Machine fixed with steel brackets for long-distance sea transport.
- Shipping terms: EXW, FOB, CFR, CIF, DDP (door-to-door available).
Full export documentation provided: Invoice, PL, CO, Form E, CE (optional).
6. After-Sales Service
- 12 months warranty for core components.
- Lifetime technical support service.
- Online guidance & remote troubleshooting.
- Engineers available for overseas installation and training.
- All spare parts fully stocked for fast delivery.

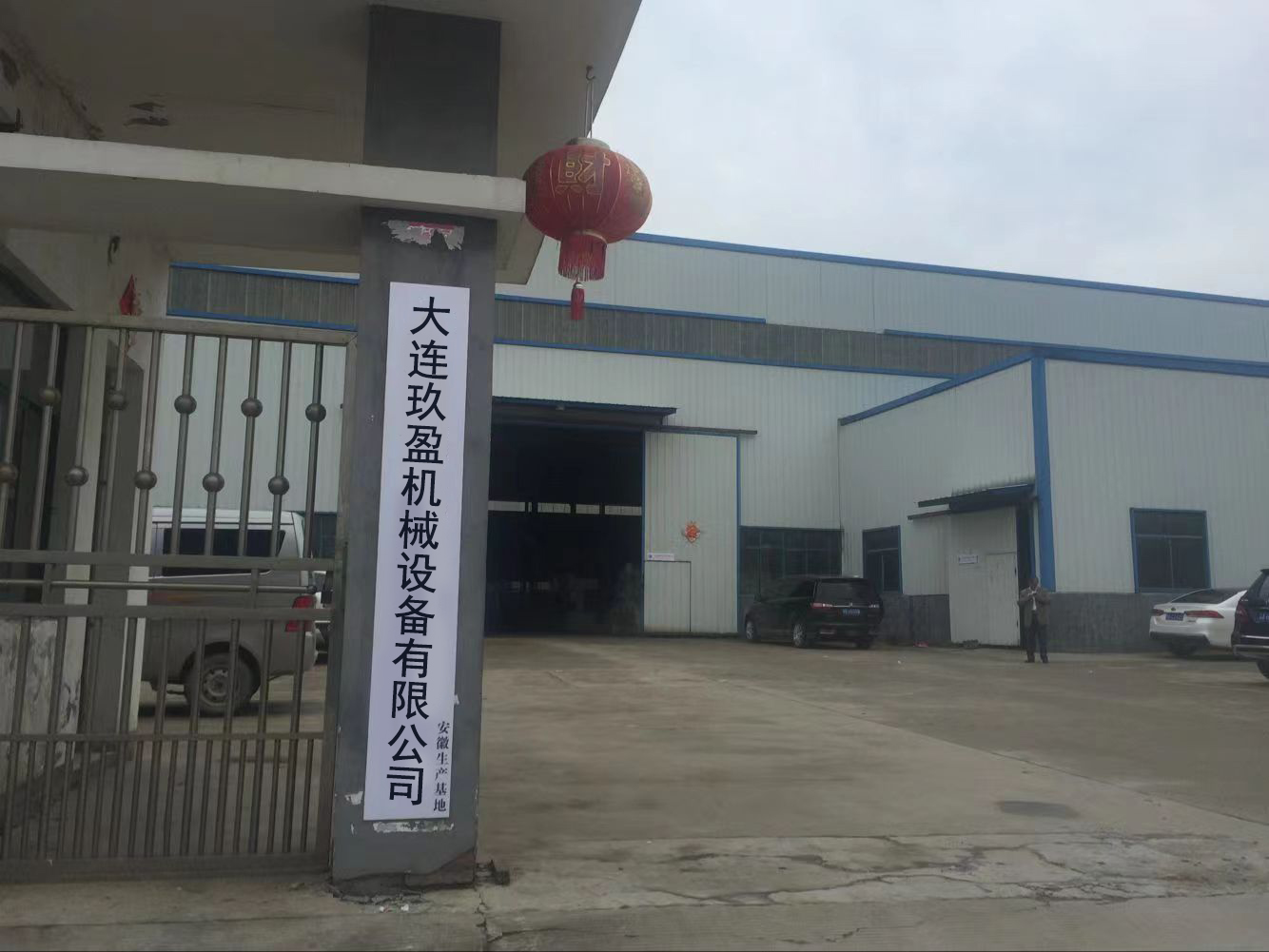

7. Company Profile
Dalian Jiuying Machinery Equipment Co., Ltd., established in 2012, specializes in the development and manufacturing of dish end forming machines, tank head cutting machines, flanging machines, spinning machines, and pressure vessel production lines.
We export to more than 30 countries including the USA, Italy, Russia, Vietnam, Turkey, India, UAE, Algeria, Malaysia, Indonesia, South Africa, Germany, Slovakia, Sri Lanka, and more.
We are committed to innovation, quality assurance, and complete customer satisfaction.
